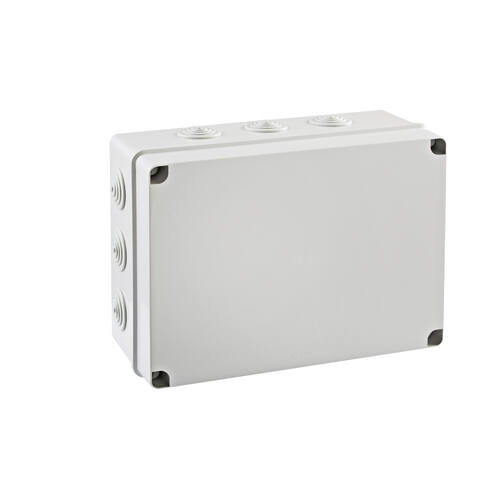

Reference: EV322

With conical cable glands

← Return to the list
Description Lid type Dimensions (mm) Type of installation
Height Width Depth
With conical cable glandsOpaque243333132Surface
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
EV322

Technical data

Technical data
Protection degreeIP65
Resistance to impactIK07
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Double insulationClass II

Accessories

Image Reference Description Data sheet
Mounting plates
92126Low polyester plate for enclosures Ref. 322
92127Low metal plate for enclosures Ref. 322
92128High polyester plate for enclosures Ref. 322
92129High metal plate for enclosures Ref. 322
Screws
226564x10 screw for installing plates and rails
Hinge
22050Light hinge
Wall-support
22060Wall support

Spare parts

Image Reference Description Data sheet
Conical glands
22962 40 diameter conical glands
22963 40 HF* diameter conical glands
Screws
22217 1/4 turn screw (2 screws with arrow + 2 screws without arrow)
22219 1/4 turn screw for 322-type boxes
Rails
22092 207 mm rail for 231-322 box
22714 271 mm rail for 322 box
Spare parts
22650 Hermetic caps
