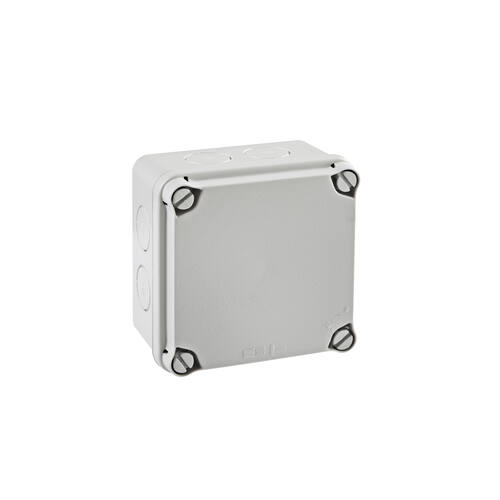

IP65-IP67 Junction boxes

EX111
Pre-punched entries
Description
Pre-punched entries
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11

Technical data

Technical data
Protection degreeIP65-IP67
Resistance to impactIK07
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Double insulationClass II

Accessories

Image Reference Description Data sheet
Mounting plates
92119Polyester plate for enclosures Ref.111
Conical glands
22952Plastic cones ø 25 mm. Bag of 50 pcs
22953Plastic cones ø 25 mm. Bag of 50 pcs
Screws
22656Screws M4x10 to join plate and rail
Hinge
22050Hinges for Light boxes (bag of 6 pcs)
Wall-support
22060Wall support (bag of 4 pcs)

Spare parts

Image Reference Description Data sheet
Screws
22217 Sealable cover ICP type B
Rails
22091
Spare parts
22650 Sealing plug (Bag of 40 pcs)
