IP65-IP67 Junction boxes

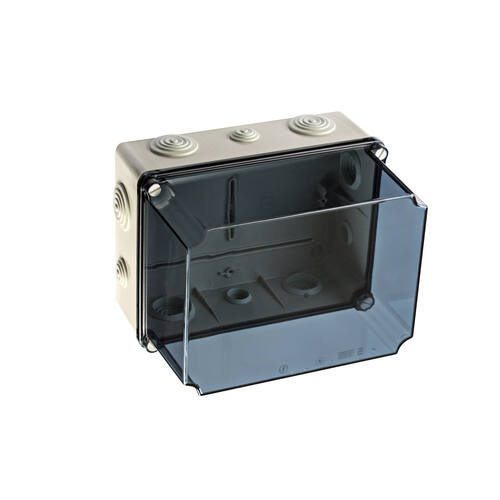

GSVT231
Pre-punched entries
Description
Pre-punched entries
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11

Technical data

Technical data
Protection degreeIP65
Resistance to impactIK07
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Double insulationClass II

Accessories

Image Reference Description Data sheet
Mounting plates
92124Polyester plate for enclosures Ref.231
92125Metal plate for enclosures Ref.231
Screws
22656Screws M4x10 to join plate and rail
Hinge
22050Hinges for Light boxes (bag of 6 pcs)
Wall-support
22060Wall support (bag of 4 pcs)

Spare parts

Image Reference Description Data sheet
Conical glands
22952 Plastic cones ø 25 mm. Bag of 50 pcs
22953 Plastic cones ø 25 mm. Bag of 50 pcs
22962 Plastic cones ø 40 mm. Bag of 50 pcs
22963 Plastic cones ø 40 mm halogen free. Bag of 50 pcs
Screws
22217 Sealable cover ICP type B
Rails
22090 Rail 159 mm - Light 231 (bag of 10 pcs)
22092 DIN rails 207 mm for Light 231-322 (bag of 10 pcs)
Spare parts
22650 Sealing plug (Bag of 40 pcs)
