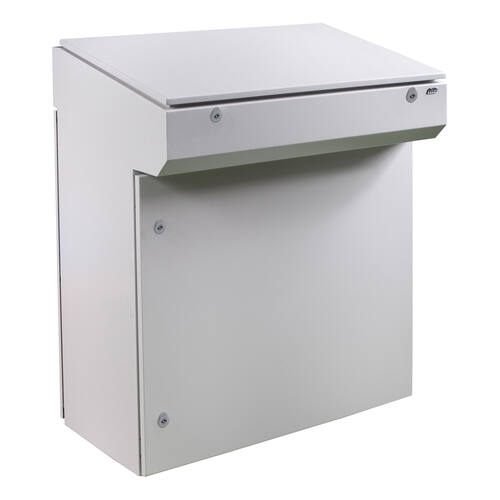

Reference: PC600

Cold-rolled steel desk IP55. Control panel 600 mm single door

← Return to the list
Dimensions (mm)
Height Width CONTROL depth
965600400
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
PC600

Technical data

Technical data
Protection degreeIP55
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Metal munting plates. VERTICAL HEIGHT 600 MM
PLBA600Mounting plate vertical 642x521 600 mm height
Metal munting plates. VERTICAL HEIGHT 900 mm
PLBI600Mounting plate vertical 900x521 900 mm height

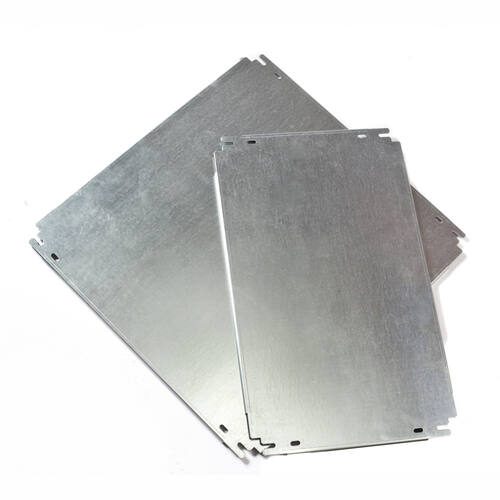

Metal munting plates. HORIZONTAL HEIGHT 400 MM
PLBE600Mounting plate horizontal 394x521 height 400 mm
Pneumatic lift for doors
46251Gas strut for doors
Profile horizontal
PMH400Horizontal profile 400 mm
Profile transversal
PMT600Transversal profile 600 mm
Profile for 19” rack
PMR19/15UProfile for 19" rack 15U
Hook lock
462505-mm double-bit lock
Lifting eyebolts
48475M12 lifting eyebolts
Plinth (corner pieces and front covers)
ZCL1060Sheet steel plinth 100x600. Corner pieces and front and rear covers
ZCL2060Sheet steel plinth 200x600. Corner pieces and front and rear covers
100+100 plinth (corner pieces and front covers)
ZCL2T1060Sheet steel plinth 200x600. Corner pieces and 2 covers 100+100
Side covers for plinth
TLZCL1040Side cover for sheet steel plinth 100x400
TLZCL2040Side cover for sheet steel plinth 200x400

Spare parts

Image Reference Description Data sheet
Keys
48449 5-mm double-bit key
