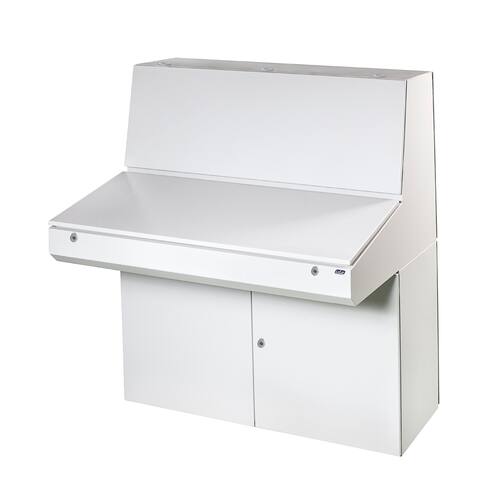

Reference: PSC1000

Cold-rolled steel desk IP55. Control and synoptic panel 1000 mm

← Return to the list
Dimensions (mm)
Height Width CONTROL depth SYNOPTIC depth
14151000500950
Plan pdf pdf
Plan dxf dxf
Data sheet pdf
PSC1000

Technical data

Technical data
Protection degreeIP55
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Metal munting plates. VERTICAL HEIGHT 600 MM
PLBA1000Mounting plate vertical 642x921 600 mm height

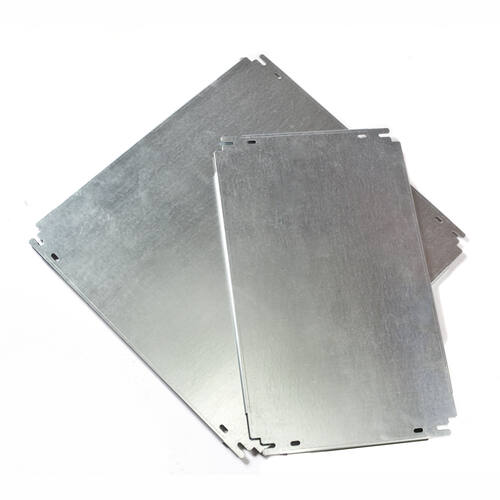

Metal munting plates. VERTICAL HEIGHT 900 mm
PLBI1000Mounting plate vertical 900x921 900 mm height
Metal munting plates. HORIZONTAL HEIGHT 400 MM
PLBE1000Mounting plate horizontal 394x921 height 400 mm
Pneumatic lift for doors
46251Gas strut for doors
Profile doble vertical
PMV700Double vertical profile 700 mm
Profile horizontal
PMH500Horizontal profile 500 mm

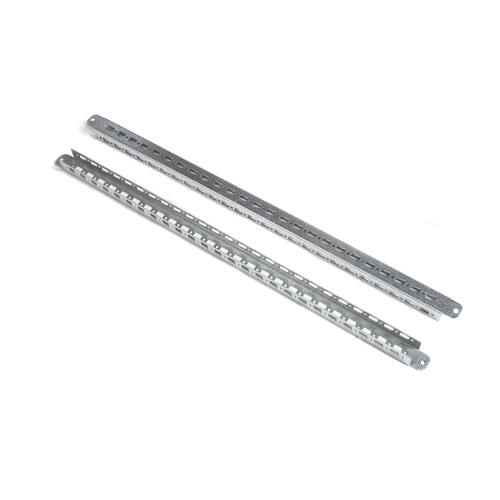

Profile transversal
PMT1000Transversal profile 1000 mm
Profile for 19” rack
PMR19/15UProfile for 19" rack 15U
Hook lock
462505-mm double-bit lock
Lifting eyebolts
48475M12 lifting eyebolts
Plinth (corner pieces and front covers)
ZCL10100Sheet steel plinth 100x1000. Corner pieces and front and rear covers
ZCL20100Sheet steel plinth 200x1000. Corner pieces and front and rear covers
100+100 plinth (corner pieces and front covers)
ZCL2T10100Sheet steel plinth 200x1000. Corner pieces and 2 covers 100+100
Side covers for plinth
TLZCL1050Side cover for sheet steel plinth 100x500
TLZCL2050Side cover for sheet steel plinth 200x500

Spare parts

Image Reference Description Data sheet
Keys
48449 5-mm double-bit key
