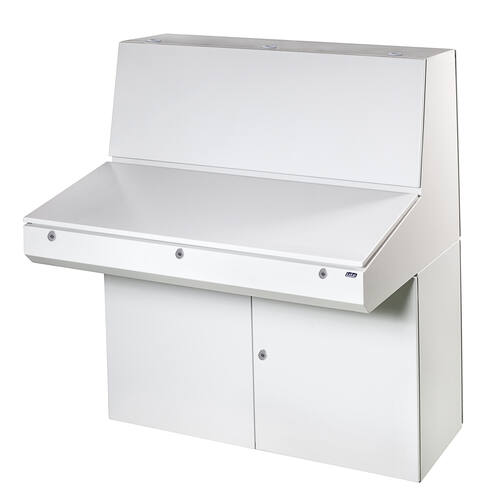

Reference: PSC1200

Cold-rolled steel desk IP55. Control and synoptic panel 1200 mm

← Return to the list
Dimensions (mm)
Height Width CONTROL depth SYNOPTIC depth
14151200500950
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
PSC1200

Technical data

Technical data
Protection degreeIP55
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Metal munting plates. VERTICAL HEIGHT 600 MM
PLBA1200Mounting plate vertical 642x1121 600 mm height

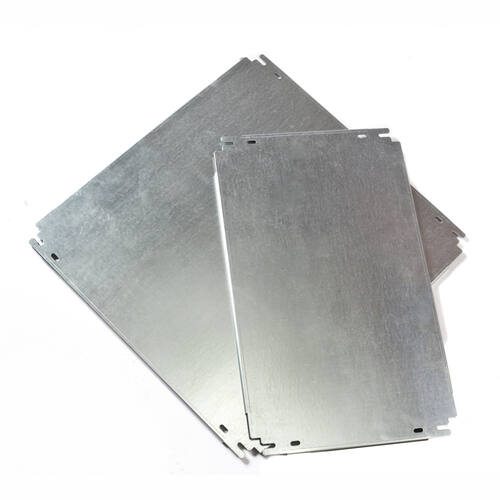

Metal munting plates. VERTICAL HEIGHT 900 mm
PLBI1200Mounting plate vertical 900x1121 900 mm height
Metal munting plates. HORIZONTAL HEIGHT 400 MM
PLBE1200Mounting plate horizontal 394x1121 height 400 mm

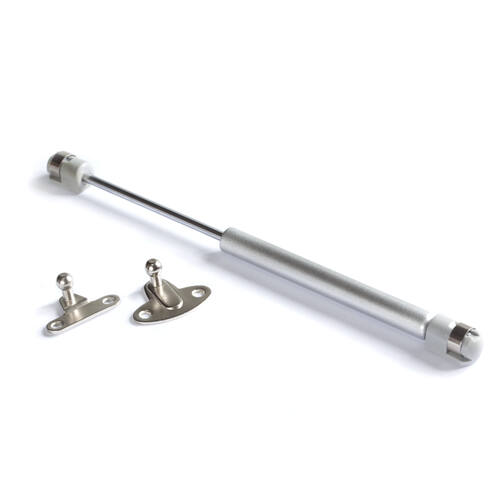

Pneumatic lift for doors
46251Gas strut for doors

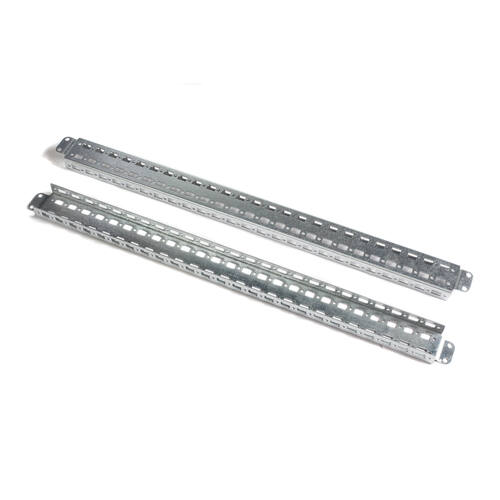

Profile doble vertical
PMV700Double vertical profile 700 mm

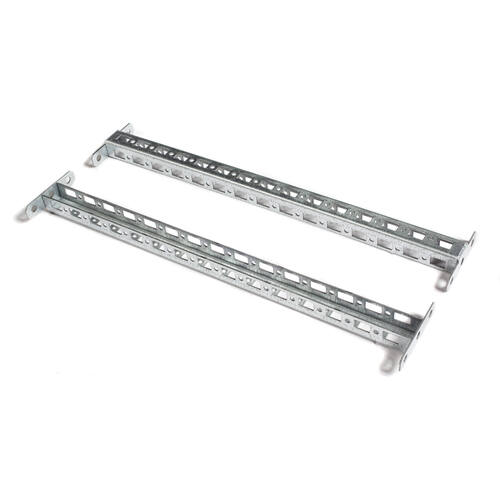

Profile horizontal
PMH500Horizontal profile 500 mm

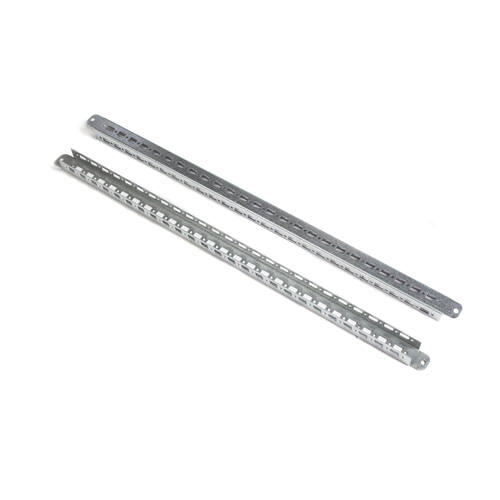

Profile transversal
PMT1200Transversal profile 1200 mm

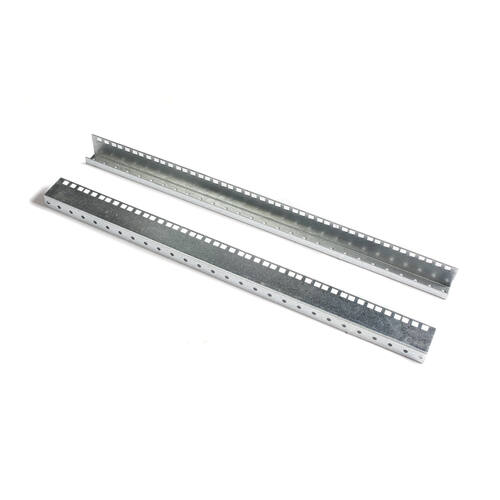

Profile for 19” rack
PMR19/15UProfile for 19" rack 15U

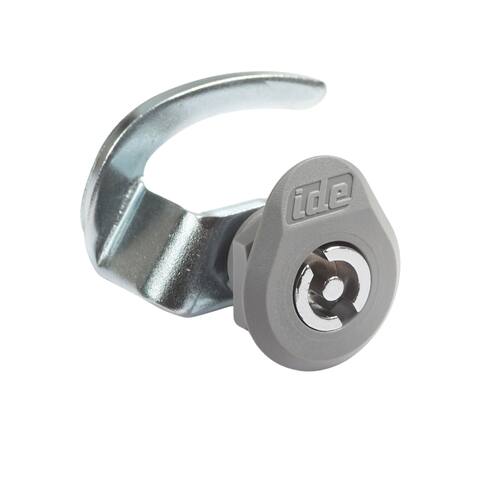

Hook lock
462505-mm double-bit lock
Lifting eyebolts
48475M12 lifting eyebolts

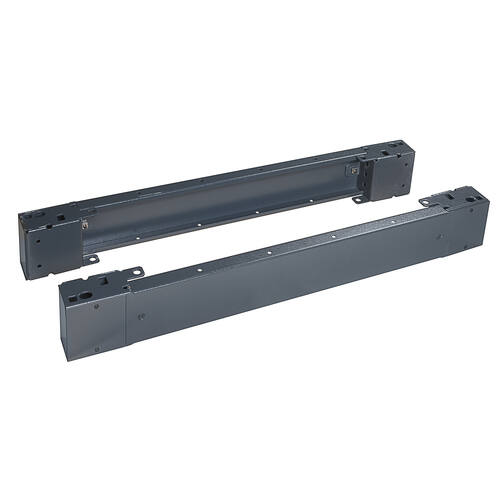

Plinth (corner pieces and front covers)
ZCL10120Sheet steel plinth 100x1200. Corner pieces and front and rear covers
ZCL20120Sheet steel plinth 200x1200. Corner pieces and front and rear covers

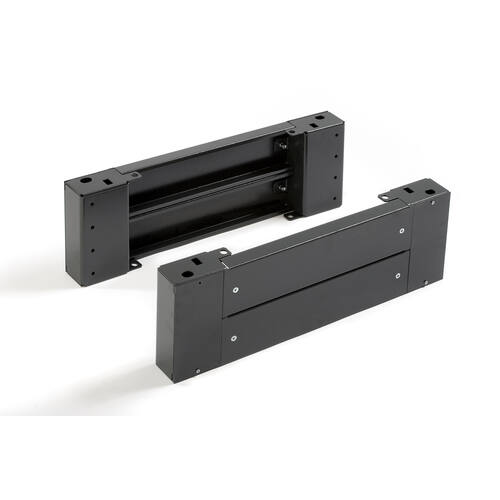

100+100 plinth (corner pieces and front covers)
ZCL2T10120Sheet steel plinth 200x1200. Corner pieces and 2 covers 100+100
Side covers for plinth
TLZCL1050Side cover for sheet steel plinth 100x500
TLZCL2050Side cover for sheet steel plinth 200x500

Spare parts

Image Reference Description Data sheet
Keys
48449 5-mm double-bit key
