Reference: PSC1600

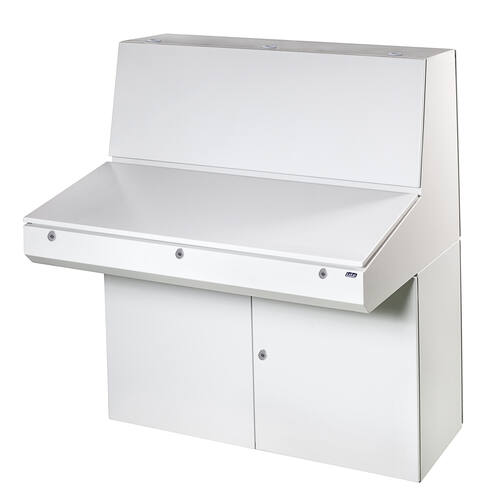

Cold-rolled steel desk IP55. Control and synoptic panel 1600 mm

← Return to the list
Dimensions (mm)
Height Width CONTROL depth SYNOPTIC depth
14151600500950
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
PSC1600

Technical data

Technical data
Protection degreeIP55
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Metal munting plates. VERTICAL HEIGHT 600 MM

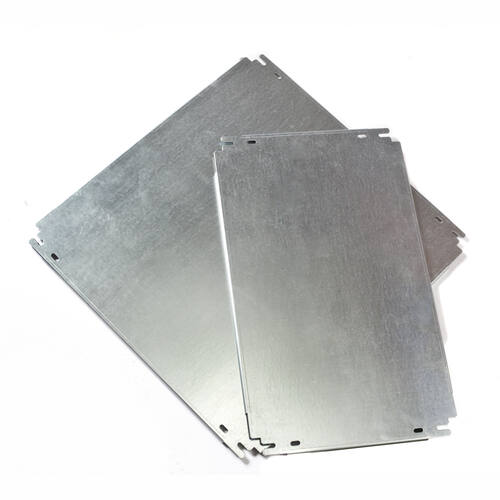

PLBA600Mounting plate vertical 642x521 600 mm height
Metal munting plates. VERTICAL HEIGHT 900 mm
PLBI600Mounting plate vertical 900x521 900 mm height
Metal munting plates. HORIZONTAL HEIGHT 400 MM
PLBE1600Mounting plate horizontal 394x1521 height 400 mm
Pneumatic lift for doors
46251Gas strut for doors
Profile doble vertical
PMV700Double vertical profile 700 mm
Profile horizontal
PMH500Horizontal profile 500 mm
Profile transversal

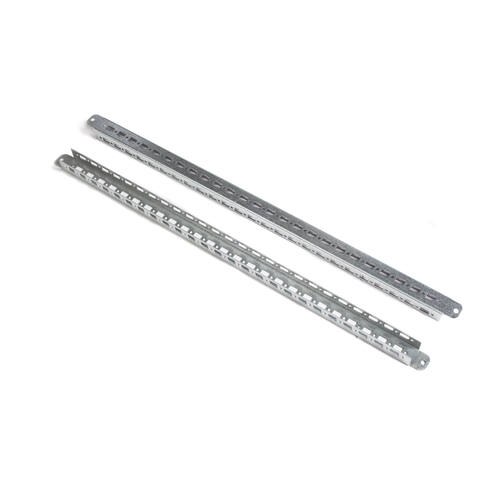

PMT600Transversal profile 600 mm
Profile for 19” rack
PMR19/15UProfile for 19" rack 15U
Hook lock
462505-mm double-bit lock
Lifting eyebolts
48475M12 lifting eyebolts
Plinth (corner pieces and front covers)

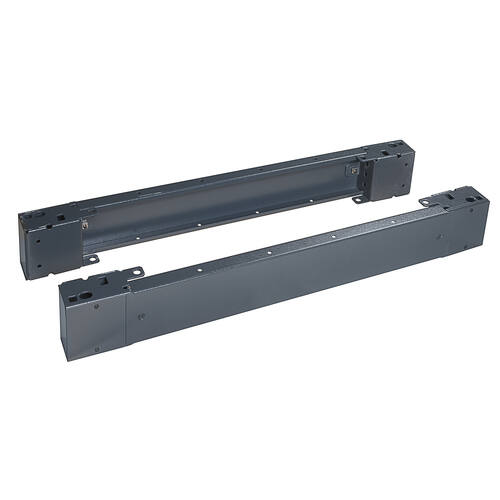

ZCL10160Sheet steel plinth 100x1600. Corner pieces and front and rear covers
ZCL20160Sheet steel plinth 200x1600. Corner pieces and front and rear covers
Side covers for plinth
TLZCL1050Side cover for sheet steel plinth 100x500
TLZCL2050Side cover for sheet steel plinth 200x500

Spare parts

Image Reference Description Data sheet
Keys
48449 5-mm double-bit key
