IP66 Polyester double insulation boxes

ROC44APO

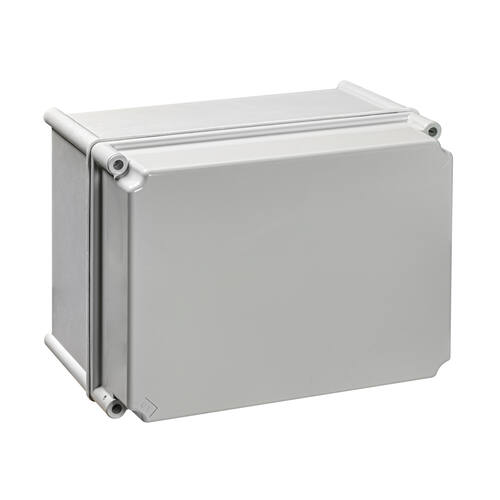

IP66 Polyester double insulation box with PC opaque high lid 4x4 modules
No. modules Height (mm) Width (mm) Depth (mm) With mounting plate cover type
4x4360360201NoOpaca alta
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11

Technical data

Technical data
Protection degreeIP66
Resistance to impactIK09
Double insulationClass II
Thermal class (ºC)105 ºC (A)
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Plain polyester mounting plates
PPL44
Plain insulating mounting plates
PBL44
Plain metal mounting plates
PML44
Coupling flanges
29504Coupling flange for width B=360
Side closing cover
29514Lock cover for width B=360
Hinges
29540External hinges (Bag of 2 pcs) except 3x2 mod. boxes
29541Flexible screwdriver hinge
29542Manual flexible hinge
Wall-mounting
29521Wall fixing lugs
29524Mast mounting
Ventilation devices
29530Purge device
29531Ventilation device Ø 19 mm. IP43
29532Ventilation device Ø 29 mm. IP43
Cable box
29545Cable box A 263/109
29546Cable box B 173/109
Cable glands
29560
29561
29562
29563
29564
29565
29566
29567
29568

Spare parts

Image Reference Description Data sheet
Closing screw
29550 Manual head

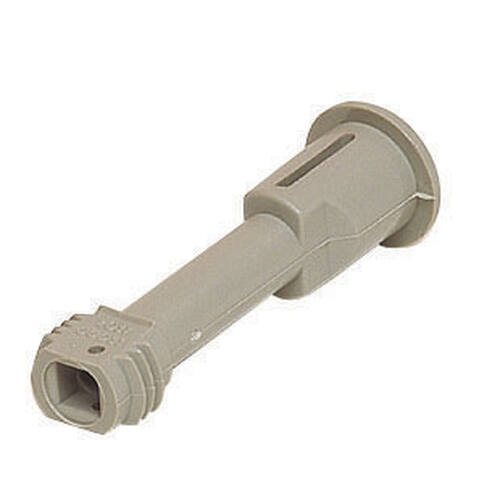

29551 Grey screwdriver head (Bag of 4 pcs)
29552 Blue screwdriver head (Bag of 4 pcs)
29553 Triangular head. For ROC32 box
29554 Seal screw head (ROC42)
29555 Grey screwdriver head (ROC32)
