IP66 Rolled steel terminal boxes

EXA3020135

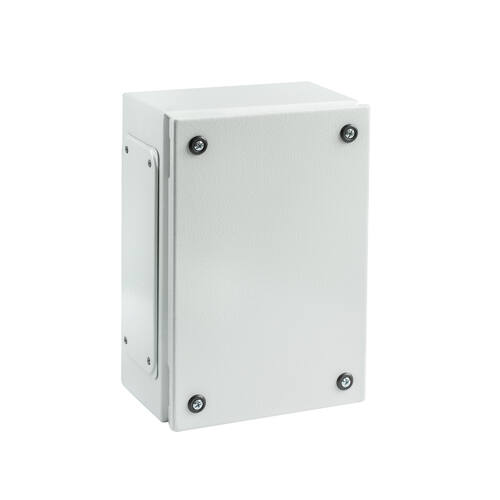

IP66 Rolled steel terminal box 300x200x135 cable entry screw-on lid
Height (mm) Width (mm) Depth (mm) With mounting plate cover type
300200135NoOpaca atornillada
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 12
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208

Accessories

Image Reference Description Data sheet
PLAIN SIDES - SCREW-ON COVER - 316L
PLT3020
FL21-type frame and cover
TFL21/00Blind lid FL21
TFL21/06FL21 type membrane (6 inputs)
TFL21/25FL21 type membrane (25 inputs)
TFL21/35FL21 type membrane (35 inputs)
TFL21/50FL21 type membrane (50 inputs)
Wall-mounting support
48423External hanger fixing (Pack 4 pcs)

Spare parts

Image Reference Description Data sheet
Spare parts for covers
48614
