Reference: EXA4020135

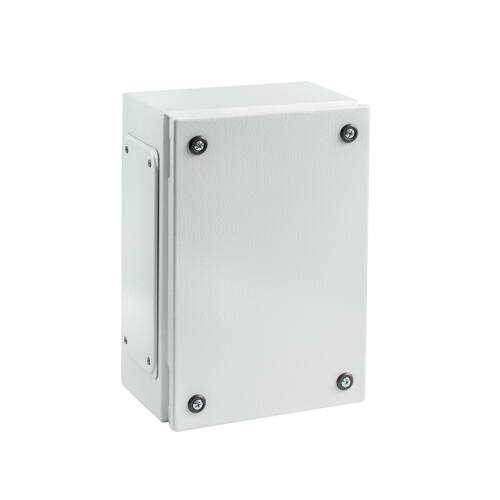

IP66 rolled steel terminal box 400x200x135. Cable entry screw cover

← Return to the list
Dimensions (mm) cover type With mounting plate
Height Width Depth
400200135Screw-fastened opaqueNo
Plan pdf pdf
Plan dxf dxf
Data sheet pdf
EXA4020135

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 12
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208

Accessories

Image Reference Description Data sheet
PLAIN SIDES - SCREW-ON COVER - 316L
PLT4020Plain metal mounting plate 400x200
FL21-type multimedia membrane
TFL21/00Blind cover FL21
TFL21/06FL21 type membrane (6 inputs)
TFL21/25FL21 type membrane (25 inputs)
TFL21/35FL21 type membrane (35 inputs)
TFL21/50FL21 type membrane (50 inputs)
Wall-mounting support
48423Zinc-plated steel wall-mounting support

Spare parts

Image Reference Description Data sheet
Spare parts for covers
48614 Caps and screws for Rolled steel cover
