Reference: ELA301590/INX-316

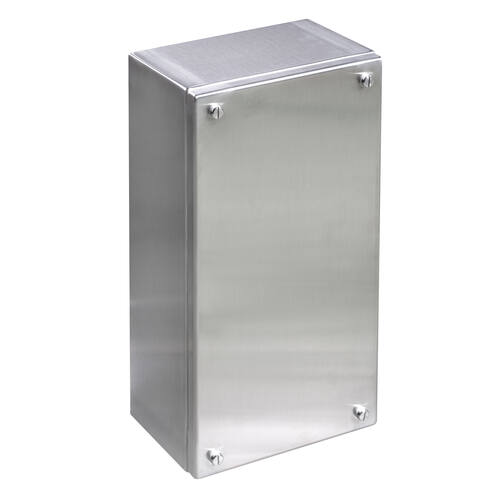

IP66 316L stainless steel terminal box 300x150x90. Plain sides screw cover
| Dimensions (mm) | cover type | With mounting plate | ||
|---|---|---|---|---|
| Height | Width | Depth | ||
| 300 | 150 | 90 | Screw-fastened opaque | No |
Technical data
| Technical data | Protection degree | IP66 | NEMA degree of protection | 1, 4, 4x, 12 | Resistance to impact | IK10 |
|---|---|
| Certificates and regulations | Directive | 2014/35/EU | Norms | UNE-EN 62208 |
Accessories
| Image | Reference | Description | Data sheet |
|---|---|---|---|
| PLAIN SIDES - SCREW-ON COVER - 316L | |||
 | PLT3015 | Plain metal mounting plate 300x150 | |
| Wall-mounting support | |||
 | 48623 | AISI 316L stainless steel wall-mounting support | |
