GNL6010040

Dimensions (mm)			Door type	With mounting plate
Height	Width	Depth	Door type	With mounting plate

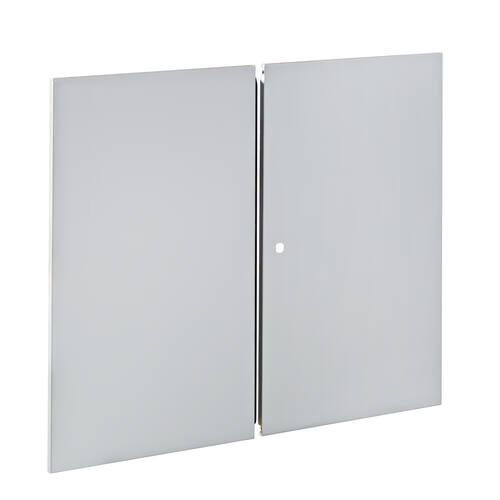

600	1010	400	Double opaque	Yes

Technical data

Technical data
Protection degree	IP54
NEMA degree of protection	1, 4, 12
Resistance to impact	IK10
Certificates and regulations
Directive	2014/35/EU
Norms	UNE-EN 62208,UNE-EN 61439-1

Accessories

Image	Reference	Description
Side panel
	PLA6040	Side panel 600x400

	48414	5-mm double-bit lock
Insulation joint
	48480	Adhesive insulation joint
Plain metal mounting plates

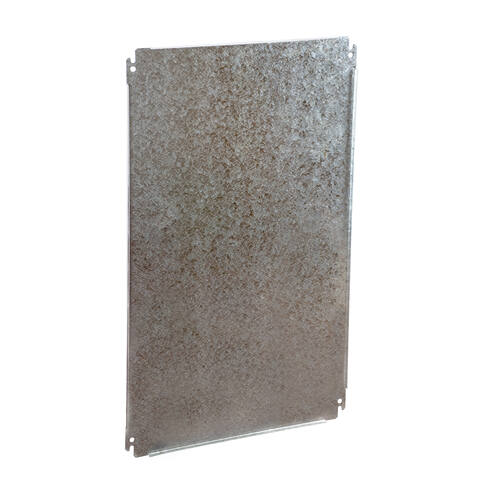

	PL60100	Plain metal mounting plate 600x1000
Continuity plate for GNL cabinets
	PLCA600	Continuity plate 526x62
Locks with key
	48493	1/4 turn mailbox type lock + key code 405
	48495	1/4 turn mailbox type lock + key code 1242E
Wing nut locks
	48413	1/4 turn lock + fixed wing nut
Plate height adjuster
	48228	Plate height adjuster
Wing nut locks
	48410	JIS 1/4 turn lock + wing nut + key
	48411	1/4 turn lock + wing nut + key code 333 (without rods)
	48591	1/4 turn lock + wing nut key code 405 (without rods)
	48592	1/4 turn lock + wing nut + key code 1242E (without rods)
Triangle locks
	48547	6.5-mm triangle lock + key (without rods)
Triangle lock for padlock
	48404	11-mm triangular padlock lock + key (without rods)
Square locks
	48540	7-mm square lock + key (without rods)
Interlocking for padlock
	29266	Interlocking for padlock
Keys
	48449	5-mm double-bit key
Assembly profiles for doors
	PMP500	Assembly profile for door 500 mm width
	PMPD500	Assembly profile for door 500 mm width
Door retainer
	48380	Retainer, L = 130 mm for Rolled-steel cabinets
Door switch with push button
	48609	Magnetic door switch
Door switch with LED with push button
	48618	Magnetic door switch
Wall-mounting support
	48423	Zinc-plated steel wall-mounting support
External fixing support
	48422	Hanger attachment from outside
Lifting eyebolts
	48475	M12 lifting eyebolts
Interlocking and actuation systems for doors
	48515	Interlocking and operating system for main cabinet
