IP66 ATEX Certified rolled steel wall-mounting cabinets

ATX404020

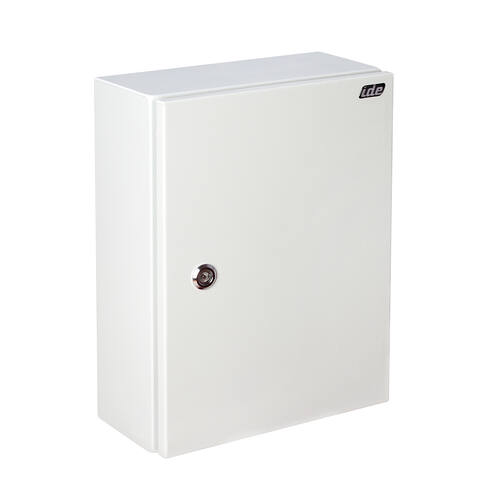

IP66 ATEX rolled steel wall-mounting cabinet 400x400x200 opaque door
Dimensions (mm) Door type With mounting plate
Height Width Depth
400400200Opaca únicaYes
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 12
Resistance to impactIK10
Certificates and regulations
Directive2014/34/EU
NormsUNE-EN 60079-0,UNE-EN 60079-7,UNE-EN 60079-31

Accessories

Image Reference Description Data sheet
Plain metal mounting plates
PL4040
Plain insulating mounting plates
PLB4040
Perforated metal mounting plates
PLU4040
Plate height adjuster
48228Pack 4 risers + 4 anti-rotation nuts
Assembly profiles for doors
PMP400
Profile for deep support
PB200
ATEX standard locks
48405Double 5 mm stainless steel AISI 316L pallet lock 3P (Without bars)
