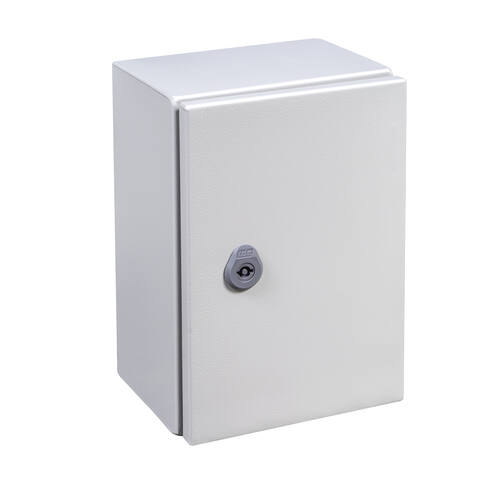

GNG406020

Dimensions (mm)			Door type	With mounting plate
Height	Width	Depth	Door type	With mounting plate
400	600	200	Single opaque	Yes

Technical data

Technical data
Protection degree	IP66
NEMA degree of protection	1, 4, 12
Resistance to impact	IK10
Certificates and regulations
Directive	2014/35/EU
Norms	UNE-EN 62208,UNE-EN 61439-1

Accessories

Image	Reference	Description
Standard locks
	48450	5-mm double-bit lock
Plain metal mounting plates
	PL4060	Plain metal mounting plate 400x600
Plain insulating mounting plates
	PLB4060	Plain insulating mounting plate 400x600
Locks with key
	48456	1/4 turn mailbox type lock + key code 333
	48493	1/4 turn mailbox type lock + key code 405
	48495	1/4 turn mailbox type lock + key code 1242E
Wing nut locks
	48412	1/4 turn lock + fixed wing nut
Perforated metal mounting plates
	PLU4060	Perforated metal mounting plate 400x600
Plate height adjuster
	48228	Plate height adjuster
Wing nut locks
	48409	JIS 1/4 turn lock + wing nut + key
	48457	1/4 turn lock + wing nut + key code 333
	48587	1/4 turn lock + wing nut + key code 1242E
	48590	1/4 turn lock + wing nut + key code 405
Depth support profile for 19” FIXED frame
	PBR200	Profile for plate support depth 200 mm
Triangle locks
	48451	8-mm triangle lock + key
	48546	6.5-mm triangle lock + key
Height adjustment element
	48716	Plate adjustment bracket
Triangle lock for padlock
	48501	11-mm triangular padlock lock + key
Square locks
	48455	7-mm square lock + key
Interlocking for padlock
	29266	Interlocking for padlock
Keys
	48449	5-mm double-bit key
Modular chassis (rolled steel)
	CH4060/1520	Rolled steel modular chassis 3x26 (78) mod.
Handle
	48545	Knob handle
Standard cable entry covers
	TS1450	Cable-entry cover 125x485
Cable entry lid for FL21-type frame
	TF1450	Cable-entry cover for FL21-type frame 125x485
FL21-type multimedia membrane
	TFL21/00	Blind cover FL21
	TFL21/06	FL21 type membrane (6 inputs)
	TFL21/25	FL21 type membrane (25 inputs)
	TFL21/35	FL21 type membrane (35 inputs)
	TFL21/50	FL21 type membrane (50 inputs)
Canopy (galvanised steel)
	TEJ6020	Rolled steel canopy 600x200
Inner door (rolled steel)
	PIN4060	Rolled steel inner door 400x600
Assembly profiles for doors
	PMP600	Assembly profile for door 600 mm width
Door retainer
	48380	Retainer, L = 130 mm for Rolled-steel cabinets
Profile for deep support
	PB200	Profile for deep support 200 mm
Door switch with push button
	48609	Magnetic door switch
	48610	Door switch with screw fixation
Door switch with LED with push button
	48618	Magnetic door switch
	48619	Door switch with screw fixation
Wall-mounting support
	48423	Zinc-plated steel wall-mounting support
External fixing support
	48422	Hanger attachment from outside
Post attachment
	48420/5060	Post attachment for 500-600 mm wide cabinet
Lifting eyebolts
	48475	M12 lifting eyebolts
