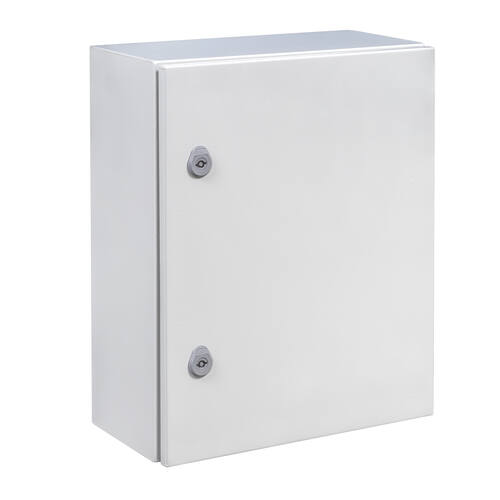

GNG504025

Dimensions (mm)			Door type	With mounting plate
Height	Width	Depth	Door type	With mounting plate
500	400	250	Opaca única	Yes

Technical data

Technical data
Protection degree	IP66
NEMA degree of protection	1, 4, 12
Resistance to impact	IK10
Certificates and regulations
Directive	2014/35/EU
Norms	UNE-EN 62208,UNE-EN 61439-1

Accessories

Image	Reference	Description
Plain metal mounting plates
	PL5040
Plain insulating mounting plates
	PLB5040
Perforated metal mounting plates
	PLU5040
Plate height adjuster
	48228	Pack 4 risers + 4 anti-rotation nuts
Depth support profile for 19” FIXED frame
	PBR250
Height adjustment element
	48716
Modular chassis (rolled steel)
	CH6040/1520
Handle
	48545	Triangle insert lock + triangle key 6.5
Standard cable entry covers
	TS1430
Cable entry lid for FL21-type frame
	TF1430
FL21-type frame and cover
	TFL21/00	Blind lid FL21
	TFL21/06	FL21 type membrane (6 inputs)
	TFL21/25	FL21 type membrane (25 inputs)
	TFL21/35	FL21 type membrane (35 inputs)
	TFL21/50	FL21 type membrane (50 inputs)
Canopy (galvanised steel)
	TEJ4025
Inner door (rolled steel)
	PIN5040
Assembly profiles for doors
	PMP400
Profile for deep support
	PB250
Door retainer
	48380	Busbar protection cover
Door switch with push button
	48609	Magnetic door switch
	48610	Door switch with screw fixation
Door switch with LED with push button
	48618
	48619
Wall-mounting support
	48423	External hanger fixing (Pack 4 pcs)
External fixing support
	48422	Mast support for cabinets 700-800 mm wide
Post attachment
	48420/3040	Clip-on plug 3.5x13
Lifting eyebolts
	48475	Central support for full plate (Pack 2 pcs)
Support stand
	49730	Cold-rolled painted steel support RAL 7035
Standard locks
	48450	Polyamide double latch key 5 mm
Locks with key
	48456	Busbar support base 160A-400A
	48493	Double door inner lock + rod 2000
	48495	Double door inner lock + rod 2000 mm
Wing nut locks
	48412	JIS 1/4 turn butterfly lock with key 3P (Without bars)
	48409	Double 5 mm ATEX pallet lock 3P (Without bars)
	48457	Quarter-turn mailbox type closure with key code 333
	48587	Security insert lock with key code 405
	48590	Security insert lock with key code 1242E
Triangle locks
	48451	Polyamide double latch key 5 mm
	48546	Quarter-turn wing knob lock without key (surface mounted)
Square locks
	48455	Busbar support profile 160A-250A
-
	48501	Quarter-turn mailbox type closure with key code 333 3P (without rods)
Interlocking for padlock
	29266	Stainless steel interlock lock
Keys
	48449	Quarter-turn mailbox type closure with key code 333 (surface)
