Reference: POL10010030

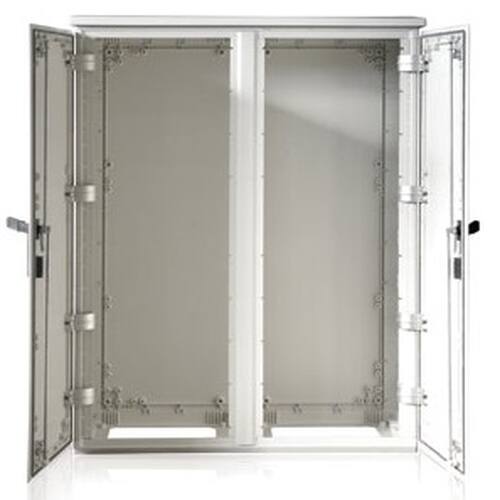

IP55 polyester wall cabinet 1000x1000x300. Double opaque door with handle

← Return to the list
Dimensions (mm) Door type With mounting plate
Height Width Depth
10101000312Double opaqueNo
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
POL10010030

Technical data

Technical data
Protection degreeIP55
Resistance to impactIK10
Double insulationClass II
Thermal class (ºC)105 ºC (A)
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
29250Door switch
Plain polyester mounting plates
PPL100100Polyester mounting plate 1000x1000
Plain metal mounting plates
PML100100Metal mounting plate 1000x1000
Mounting plate adjustment pack
29235Plate adjustment pack 300
Pedestal with hinged door
PDS10030Surface-mount pedestal
Canopies (polyester)
TEJP10030Polyester canopy 1000x300
Plinth (polyester)
ZOC10030/PPolyester plinth 60x1000x300
Door retainer
29255Door retainer
Wall-mounting
29240Wall mounting brackets (Pack of 4 pcs)
Locks with handle
29241Handle lock + 3-mm double-bit insert
29242Handle lock + 11-mm triangular insert
29243Handle lock + C911-type insert
29244Handle lock with padlock bolt + 11-mm triangular insert
29247Euro-profile handle lock Euro profile (without bowler)
