Reference: POL1008030

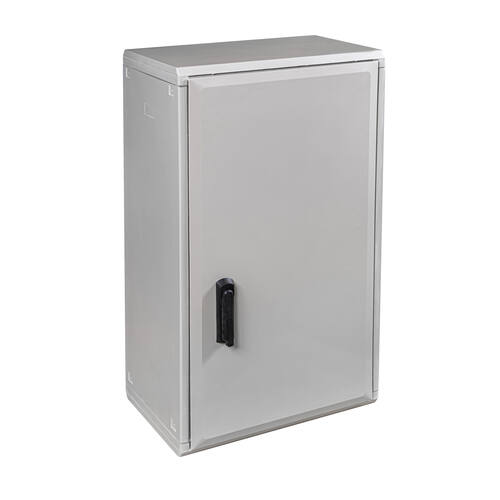

IP66 polyester wall cabinet 1000x800x300. Opaque door with handle

← Return to the list
Dimensions (mm) Door type With mounting plate
Height Width Depth
1000800300Single opaqueNo
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
POL1008030

Technical data

Technical data
Protection degreeIP66
Resistance to impactIK10
Double insulationClass II
Thermal class (ºC)105 ºC (A)

Accessories

Image Reference Description Data sheet
Plain polyester mounting plates

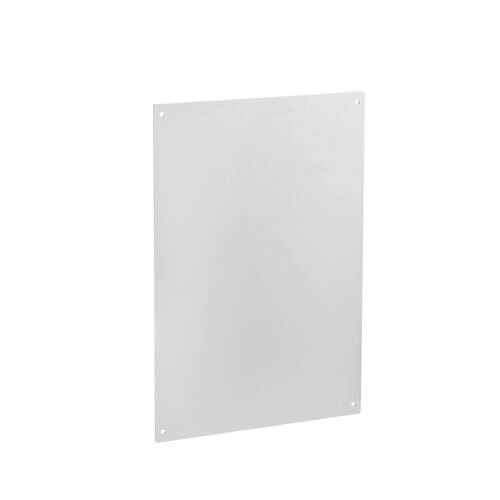

PPL10080Polyester mounting plate 1000x800
Plain metal mounting plates

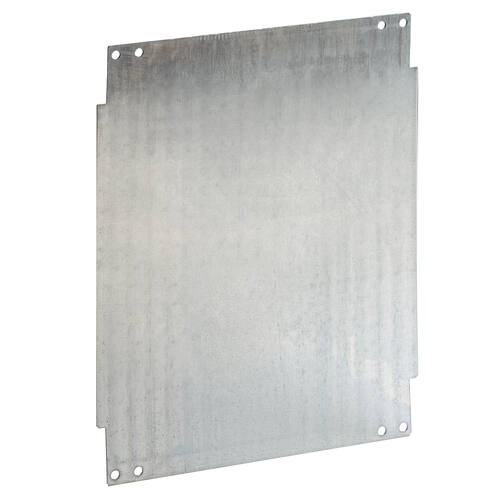

PML10080Steel mounting plate 1000x800
Plate adjustment pack
29225Plate adjustment pack for 300-mm depth cabinet
Wall-mounting
29221Insulating head screws
29222Adjustable wall mounting brackets
Locks
292293-mm double-bit lock (standard)
2923011-mm triangular lock + key
29231Keya type T141 lock + key
29233Type 220 lock + key
Door retainer
29256Door retainer for cabinets <800 mm wide
Interlocking for padlock
29266Interlocking for padlock
