Reference: POL12512530/T

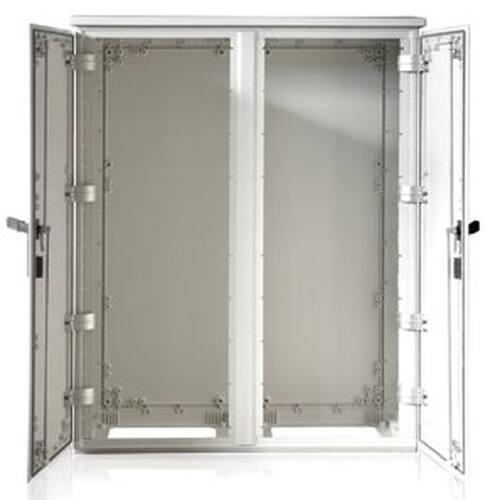

IP55 polyester wall cab. 1250x1250x300. Double opaque door w/handle. Canopy

← Return to the list
Dimensions (mm) Door type With mounting plate
Height Width Depth
12891286340Double opaqueNo
Data sheet pdf
POL12512530/T

Technical data

Technical data
Protection degreeIP55
Resistance to impactIK10
Double insulationClass II
Thermal class (ºC)105 ºC (A)
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
29250Door switch
Plain metal mounting plates
PML125125Steel mounting plate 1250x1250
Mounting plate adjustment pack
29235Plate adjustment pack 300
Pedestal with hinged door
PDS12530Surface-mount pedestal
Canopies (polyester)
TEJP12530Polyester canopy 1250x300
Plinth (polyester)
ZOC12530/PPolyester plinth 60x1250x300
Door retainer
29255Door retainer
Wall-mounting
29240Wall mounting brackets (Pack of 4 pcs)
Locks with handle
29241Handle lock + 3-mm double-bit insert
29242Handle lock + 11-mm triangular insert
29243Handle lock + C911-type insert
29244Handle lock with padlock bolt + 11-mm triangular insert
29247Euro-profile handle lock Euro profile (without bowler)
