Reference: POL604023PT

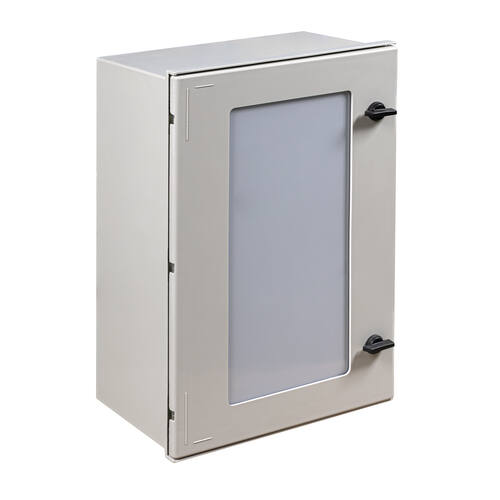

IP66 polyester wall cabinet 600x400x230. Transparent door

Dimensions (mm) Door type With mounting plate
Height Width Depth
600400230Single transparentNo
POL604023PT

Technical data

Technical data
Protection degreeIP66
Resistance to impactIK08
Double insulationClass II
Thermal class (ºC)105 ºC (A)
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Plain polyester mounting plates
PPL6040Polyester mounting plate 600x400
Plain metal mounting plates
PML6040Steel mounting plate 600x400
Plain insulating mounting plates
PBL6040Insulating mounting plate 600x400
Plate adjustment pack
29224Plate adjustment pack for 230-mm depth cabinet
Inner doors (polyester)
PPIN6040Polyester inner door 600x400
Modular chassis (polyester)
PCH6040Polyester modular chassis 3x18 (54 modules)
Wall-mounting
29221Insulating head screws
29222Adjustable wall mounting brackets
Locks
292293-mm double-bit lock (standard)
2923011-mm triangular lock + key
29231Keya type T141 lock + key
29233Type 220 lock + key
Door retainer
29256Door retainer for cabinets <800 mm wide
Interlocking for padlock
29266Interlocking for padlock
Post attachment
48420/3040Post attachment for 300-400 mm wide cabinet
