Reference: POL605023

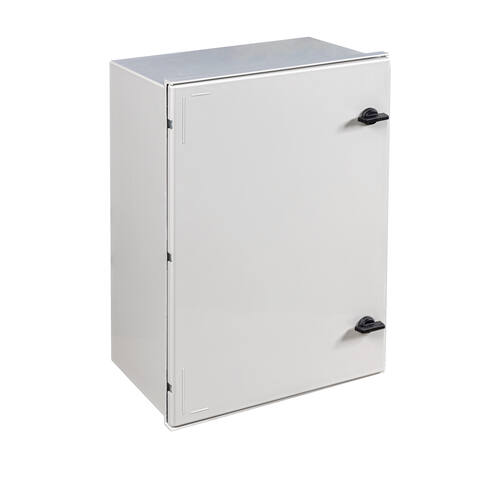

IP66 polyester wall cabinet 600x500x230. Opaque door

Dimensions (mm) Door type With mounting plate
Height Width Depth
600500230Single opaqueNo
POL605023

Technical data

Technical data
Protection degreeIP66
Resistance to impactIK10
Double insulationClass II
Thermal class (ºC)105 ºC (A)
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Plain polyester mounting plates
PPL6050Polyester mounting plate 600x500
Plain metal mounting plates
PML6050Steel mounting plate 600x500
Plain insulating mounting plates
PBL6050Insulating mounting plate 600x500
Plate adjustment pack
29224Plate adjustment pack for 230-mm depth cabinet
Inner doors (polyester)
PPIN6050Polyester inner door 600x500
Modular chassis (polyester)
PCH6050Polyester modular chassis 3x23 (69 modules)
Wall-mounting
29221Insulating head screws
29222Adjustable wall mounting brackets
Locks
292293-mm double-bit lock (standard)
2923011-mm triangular lock + key
29231Keya type T141 lock + key
29233Type 220 lock + key
Door retainer
29256Door retainer for cabinets <800 mm wide
Interlocking for padlock
29266Interlocking for padlock
Post attachment
48420/5060Post attachment for 500-600 mm wide cabinet
