Reference: POL755030

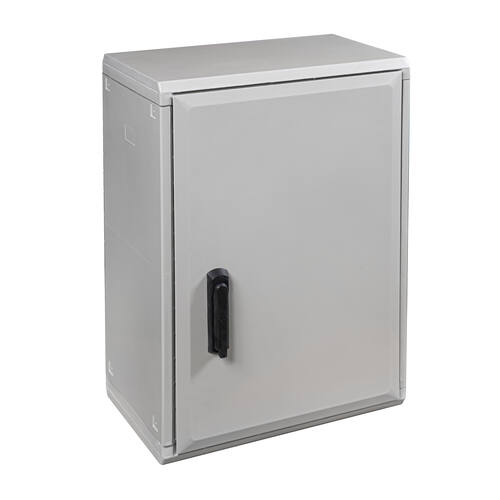

IP55 polyester wall cabinet 750x500x300. Opaque door with handle

← Return to the list
Dimensions (mm) Door type With mounting plate
Height Width Depth
760500312Single opaqueNo
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
POL755030

Technical data

Technical data
Protection degreeIP55
Resistance to impactIK10
Double insulationClass II
Thermal class (ºC)105 ºC (A)
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
29250Door switch
Plain polyester mounting plates
PPL7550Polyester mounting plate 750x500
Plain metal mounting plates
PML7550Metal mounting plate 750x500
Mounting plate adjustment pack
29235Plate adjustment pack 300
Pedestal with hinged door
PDS5030Surface-mount pedestal
Canopies (polyester)
TEJP5030Polyester canopy 500x300
Plinth (polyester)
ZOC5030/PPolyester plinth 60x500x300
Door retainer
29255Door retainer
Wall-mounting
29240Wall mounting brackets (Pack of 4 pcs)
Locks with handle
29241Handle lock + 3-mm double-bit insert
29242Handle lock + 11-mm triangular insert
29243Handle lock + C911-type insert
29244Handle lock with padlock bolt + 11-mm triangular insert
29247Euro-profile handle lock Euro profile (without bowler)
