IP66-IP55 Polyester wall-mounting cabinets

POL806030PT

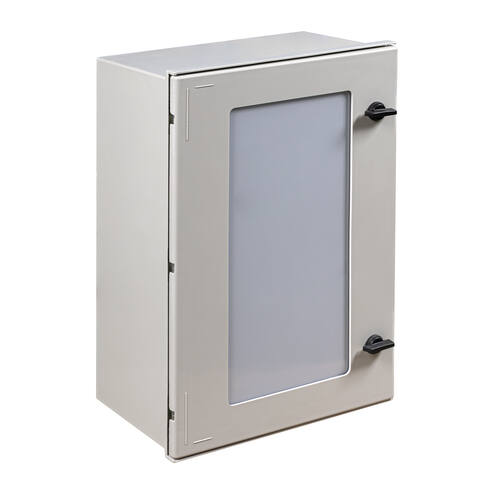

IP66 Polyester wall-mounting cabinet 800x600x300 transparent door
Dimensions (mm) Door type With mounting plate
Height Width Depth
800600300Transparente únicaNo
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11

Technical data

Technical data
Protection degreeIP66
Resistance to impactIK08
Double insulationClass II
Thermal class (ºC)105 ºC (A)
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Plain polyester mounting plates
PPL8060
Plain metal mounting plates
PML8060
Plain insulating mounting plates
PBL8060
Plate adjustment pack
29225
Inner doors (polyester)
PPIN8060
Modular chassis (polyester)
PCH8060
PCH8060/5
Wall-mounting
29221Insulating head screws (Pack of 4 pcs)
29222Adjustable wall mounting brackets (Pack of 4 pcs)
Locks
29229Double bar DIN 3 mm lock
29230Triangular lock 11 mm + key
29231Manual lock with key type Keya T141
29233Manual lock with key type 220
Door retainer
29256
Post attachment
48420/5060Mast support for cabinets 300-400 mm wide
Interlocking for padlock
29266Stainless steel interlock lock
