Reference: GN403020/SP

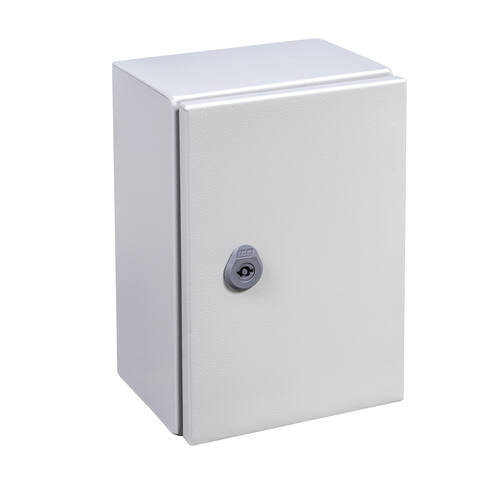

IP66 rolled steel wall cabinet 400x300x200. Opaque door without plate

Dimensions (mm) Door type With mounting plate
Height Width Depth
400300200Single opaqueNo
GN403020/SP

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 12
Resistance to impactIK08
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
484605-mm double-bit key
Standard locks
484505-mm double-bit lock
Plain metal mounting plates
PL4030Plain metal mounting plate 400x300
Plain insulating mounting plates
PLB4030Plain insulating mounting plate 400x300
Locks with key
484561/4 turn mailbox type lock + key code 333
484931/4 turn mailbox type lock + key code 405
484951/4 turn mailbox type lock + key code 1242E
Wing nut locks
484121/4 turn lock + fixed wing nut
Perforated metal mounting plates
PLU4030Perforated metal mounting plate 400x300
Plate height adjuster
48228Plate height adjuster
Wing nut locks
48409JIS 1/4 turn lock + wing nut + key
484571/4 turn lock + wing nut + key code 333
485871/4 turn lock + wing nut + key code 1242E
485901/4 turn lock + wing nut + key code 405
Triangle locks
484518-mm triangle lock + key
485466.5-mm triangle lock + key
Triangle lock for padlock
4850111-mm triangular padlock lock + key
Square locks
484557-mm square lock + key
Interlocking for padlock
29266Interlocking for padlock
Keys
484495-mm double-bit key
Modular chassis (rolled steel)
CH4030/1520Rolled steel modular chassis 3x11 (33) mod.
Handle
48545Knob handle
Standard cable entry covers
TS1423Cable-entry cover 125x215
Cable entry lid for FL21-type frame
TF1423Cable-entry cover for FL21-type frame 125x215
FL21-type multimedia membrane
TFL21/00Blind cover FL21
TFL21/06FL21 type membrane (6 inputs)
TFL21/25FL21 type membrane (25 inputs)
TFL21/35FL21 type membrane (35 inputs)
TFL21/50FL21 type membrane (50 inputs)
Canopy (galvanised steel)
TEJ3020Rolled steel canopy 300x200
Inner door (rolled steel)

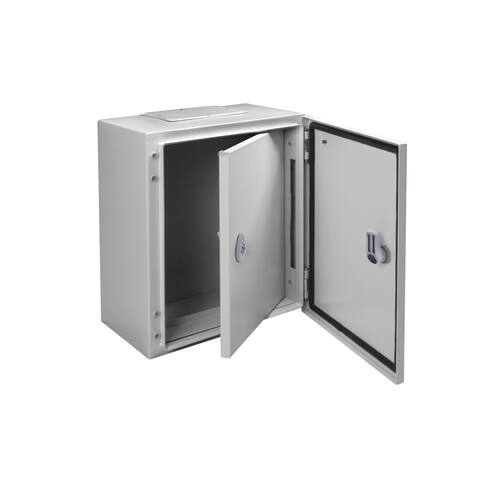

PIN4030Rolled steel inner door 400x300
Assembly profiles for doors
PMP300Assembly profile for door 300 mm width
Door retainer
48380Retainer, L = 130 mm for Rolled-steel cabinets
Profile for deep support
PB200Profile for deep support 200 mm
Door switch with push button
48609Magnetic door switch
48610Door switch with screw fixation
Door switch with LED with push button
48618Magnetic door switch
48619Door switch with screw fixation
Wall-mounting support
48423Zinc-plated steel wall-mounting support
External fixing support
48422Hanger attachment from outside
Post attachment
48420/3040Post attachment for 300-400 mm wide cabinet
Lifting eyebolts
48475M12 lifting eyebolts

Spare parts

Image Reference Description Data sheet
Spare doors (stainless steel)

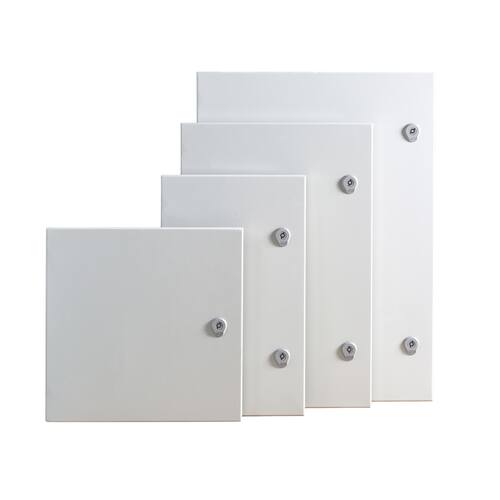

PO4030 Rolled steel opaque door 400x300
Spare hinge
48635 Argenta hinge
