Reference: GN605015/SP

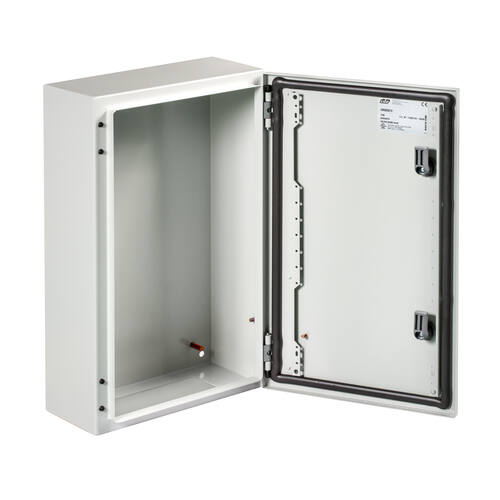

IP66 rolled steel wall cabinet 600x500x150. Opaque door without plate

Dimensions (mm) Door type With mounting plate
Height Width Depth
600500150Single opaqueNo
GN605015/SP

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 12
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Standard locks
484505-mm double-bit lock
Plain metal mounting plates
PL6050Plain metal mounting plate 600x500
Plain insulating mounting plates
PLB6050Plain insulating mounting plate 600x500
Locks with key
484561/4 turn mailbox type lock + key code 333
484931/4 turn mailbox type lock + key code 405
484951/4 turn mailbox type lock + key code 1242E
Wing nut locks
484121/4 turn lock + fixed wing nut
Perforated metal mounting plates
PLU6050Perforated metal mounting plate 600x500
Plate height adjuster
48228Plate height adjuster
Wing nut locks
48409JIS 1/4 turn lock + wing nut + key
484571/4 turn lock + wing nut + key code 333
485871/4 turn lock + wing nut + key code 1242E
485901/4 turn lock + wing nut + key code 405
Triangle locks
484518-mm triangle lock + key
485466.5-mm triangle lock + key
Triangle lock for padlock
4850111-mm triangular padlock lock + key
Square locks
484557-mm square lock + key
Interlocking for padlock
29266Interlocking for padlock
Keys
484495-mm double-bit key
Handle
48545Knob handle
Standard cable entry covers
TS0830Cable-entry cover 65x285
Canopy (galvanised steel)
TEJ5015Rolled steel canopy 500x150
Assembly profiles for doors
PMP500Assembly profile for door 500 mm width
Door retainer
48380Retainer, L = 130 mm for Rolled-steel cabinets
Profile for deep support
PB150Profile for deep support 150 mm
Door switch with push button
48609Magnetic door switch
48610Door switch with screw fixation
Door switch with LED with push button
48618Magnetic door switch
48619Door switch with screw fixation
Wall-mounting support
48423Zinc-plated steel wall-mounting support
External fixing support
48422Hanger attachment from outside
Post attachment
48420/5060Post attachment for 500-600 mm wide cabinet
Lifting eyebolts
48475M12 lifting eyebolts

Spare parts

Image Reference Description Data sheet
Spare doors (stainless steel)
PO6040 Rolled steel opaque door 600x400
Spare hinge
48635 Argenta hinge
