Reference: GN806025

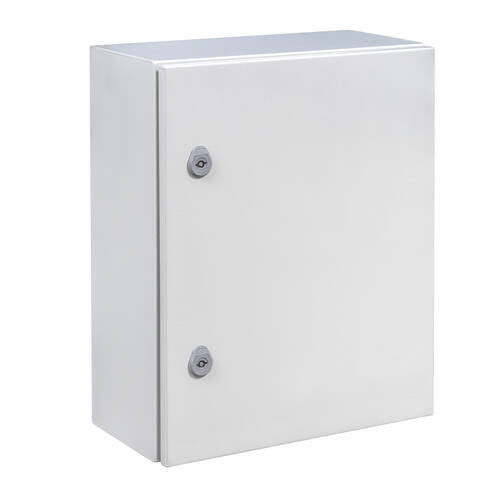

IP66 rolled steel wall cabinet 800x600x250. Opaque door with plate

Dimensions (mm) Door type With mounting plate
Height Width Depth
800600250Single opaqueYes
GN806025

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 12
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Standard locks
484505-mm double-bit lock
Plain metal mounting plates
PL8060Plain metal mounting plate 800x600
Plain insulating mounting plates
PLB8060Plain insulating mounting plate 800x600
Locks with key
484561/4 turn mailbox type lock + key code 333
484931/4 turn mailbox type lock + key code 405
484951/4 turn mailbox type lock + key code 1242E
Micro-perforated metal mounting plates
PLM8060Microperforated mounting plate 800x600
Wing nut locks
484121/4 turn lock + fixed wing nut
Perforated metal mounting plates
PLU8060Perforated metal mounting plate 800x600
Plate height adjuster
48228Plate height adjuster
Wing nut locks
48409JIS 1/4 turn lock + wing nut + key
484571/4 turn lock + wing nut + key code 333
485871/4 turn lock + wing nut + key code 1242E
485901/4 turn lock + wing nut + key code 405
Depth support profile for 19” FIXED frame
PBR250Profile for plate support depth 250 mm
Triangle locks
484518-mm triangle lock + key
485466.5-mm triangle lock + key
Height adjustment element
48716Plate adjustment bracket
Triangle lock for padlock
4850111-mm triangular padlock lock + key
19” FIXED frame
PMRA19/17U
Square locks
484557-mm square lock + key
Cover for 19” Rack frame. BLIND FIXED
TCB1UBlind covers for 19'' Rack
TCB2UBlind covers for 19'' Rack
TCB3UBlind covers for 19'' Rack
TCB4UBlind covers for 19'' Rack
TCB6UBlind covers for 19'' Rack
Interlocking for padlock
29266Interlocking for padlock
Modular lid for 19” FIXED frame
TMBGN3UModular cover for 19" rack
Keys
484495-mm double-bit key
Cover for 19” Rack frame. WITH BRUSH FIXED
TBC1UBrush cover for 19" rack

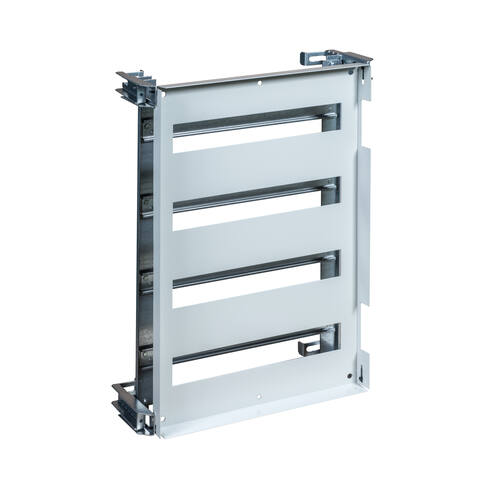

Modular chassis (rolled steel)
CH8060/2530Rolled steel modular chassis 4x26-1x24 (128) mod.
Handle
48545Knob handle
Plinths (galvanised steel)
ZCLA106025Galvanised steel plinth 100x600x250
ZCLA206025Galvanised steel plinth 200x600x250
Plinth cable support
48497Plinth cable support 250 mm depth
Standard cable entry covers
TS1450Cable-entry cover 125x485
Cable entry lid for FL21-type frame
TF1450Cable-entry cover for FL21-type frame 125x485
FL21-type multimedia membrane
TFL21/00Blind cover FL21
TFL21/06FL21 type membrane (6 inputs)
TFL21/25FL21 type membrane (25 inputs)
TFL21/35FL21 type membrane (35 inputs)
TFL21/50FL21 type membrane (50 inputs)
Canopy (galvanised steel)
TEJ6025Rolled steel canopy 600x250
Inner door (rolled steel)
PIN8060Rolled steel inner door 800x600
Rods
48385Rods for 800 mm high cabinets
Assembly profiles for doors
PMP600Assembly profile for door 600 mm width
Door retainer
48380Retainer, L = 130 mm for Rolled-steel cabinets
Profile for deep support
PB250Profile for deep support 250 mm
Door switch with push button
48609Magnetic door switch
48610Door switch with screw fixation
Door switch with LED with push button
48618Magnetic door switch
48619Door switch with screw fixation
Wall-mounting support
48423Zinc-plated steel wall-mounting support
External fixing support
48422Hanger attachment from outside
Post attachment
48420/5060Post attachment for 500-600 mm wide cabinet
Lifting eyebolts
48475M12 lifting eyebolts
Support stand
49730Cold-Rolled steel support in grey RAL 7035

Spare parts

Image Reference Description Data sheet
Spare doors (stainless steel)
PO8060 Rolled steel opaque door 800x600
Spare hinge
48635 Argenta hinge
