Reference: GNT1006025

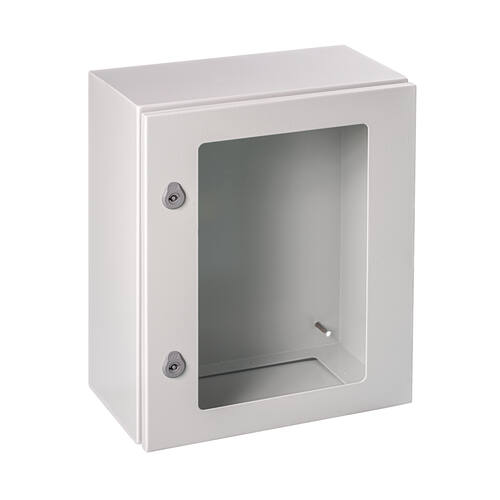

IP66 rolled steel wall cabinet 1000x600x250. Transparent door with plate

Dimensions (mm) Door type With mounting plate
Height Width Depth
1000600250Single transparentYes
GNT1006025

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 12
Resistance to impactIK09
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Standard locks
484505-mm double-bit lock
484145-mm double-bit lock
Plain metal mounting plates
PL10060Plain metal mounting plate 1000x600
Plain insulating mounting plates
PLB10060Plain insulating mounting plate 1000x600
Wing nut locks
484131/4 turn lock + fixed wing nut
Perforated metal mounting plates
PLU10060Perforated metal mounting plate 1000x600
Plate height adjuster
48228Plate height adjuster
Wing nut locks
48410JIS 1/4 turn lock + wing nut + key
484111/4 turn lock + wing nut + key code 333 (without rods)
485911/4 turn lock + wing nut key code 405 (without rods)
485921/4 turn lock + wing nut + key code 1242E (without rods)
Depth support profile for 19” FIXED frame
PBR250Profile for plate support depth 250 mm
Triangle locks
484158-mm triangle lock + key (without rods)
485476.5-mm triangle lock + key (without rods)
Height adjustment element
48716Plate adjustment bracket
Triangle lock for padlock
4840411-mm triangular padlock lock + key (without rods)
19” FIXED frame
PMRA19/21U
Cover for 19” Rack frame. BLIND FIXED
TCB1UBlind covers for 19'' Rack
TCB2UBlind covers for 19'' Rack
TCB3UBlind covers for 19'' Rack
TCB4UBlind covers for 19'' Rack
TCB6UBlind covers for 19'' Rack
Interlocking for padlock
29266Interlocking for padlock
Modular lid for 19” FIXED frame
TMBGN3UModular cover for 19" rack
Keys
484495-mm double-bit key
Cover for 19” Rack frame. WITH BRUSH FIXED
TBC1UBrush cover for 19" rack
Modular chassis (rolled steel)
CH10060/2530Rolled steel modular chassis 6x26 (156) mod.
Handle
48545Knob handle
Plinths (galvanised steel)
ZCLA106025Galvanised steel plinth 100x600x250
ZCLA206025Galvanised steel plinth 200x600x250
Plinth cable support
48497Plinth cable support 250 mm depth
Standard cable entry covers
TS1450Cable-entry cover 125x485
Cable entry lid for FL21-type frame
TF1450Cable-entry cover for FL21-type frame 125x485
FL21-type multimedia membrane
TFL21/00Blind cover FL21
TFL21/06FL21 type membrane (6 inputs)
TFL21/25FL21 type membrane (25 inputs)
TFL21/35FL21 type membrane (35 inputs)
TFL21/50FL21 type membrane (50 inputs)
Canopy (galvanised steel)
TEJ6025Rolled steel canopy 600x250
Inner door (rolled steel)
PIN10060Rolled steel inner door 1000x600
Rods
48386Rods for 1000 mm high cabinets
Profile for deep support
PB250Profile for deep support 250 mm
Door switch with push button
48609Magnetic door switch
48610Door switch with screw fixation
Door switch with LED with push button
48618Magnetic door switch
48619Door switch with screw fixation
Wall-mounting support
48423Zinc-plated steel wall-mounting support
External fixing support
48422Hanger attachment from outside
Post attachment
48420/5060Post attachment for 500-600 mm wide cabinet
Lifting eyebolts
48475M12 lifting eyebolts
Support stand
49730Cold-Rolled steel support in grey RAL 7035

Spare parts

Image Reference Description Data sheet
Spare hinge
48635 Argenta hinge
