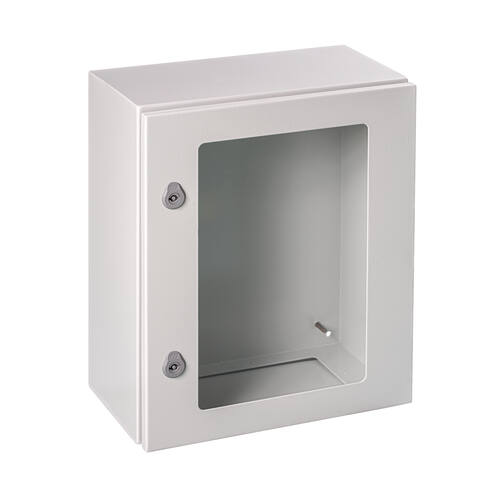

GNT1008025

Dimensions (mm)			Door type	With mounting plate
Height	Width	Depth	Door type	With mounting plate
1000	800	250	Single transparent	Yes

Technical data

Technical data
Protection degree	IP66
NEMA degree of protection	1, 4, 12
Resistance to impact	IK09
Certificates and regulations
Directive	2014/35/EU
Norms	UNE-EN 62208,UNE-EN 61439-1

Accessories

Image	Reference	Description
Standard locks
	48450	5-mm double-bit lock

	48414	5-mm double-bit lock
Plain metal mounting plates
	PL10080	Plain metal mounting plate 1000x800
Plain insulating mounting plates
	PLB10080	Plain insulating mounting plate 1000x800
Wing nut locks
	48413	1/4 turn lock + fixed wing nut
Perforated metal mounting plates
	PLU10080	Perforated metal mounting plate 1000x800
Plate height adjuster
	48228	Plate height adjuster
Wing nut locks
	48410	JIS 1/4 turn lock + wing nut + key
	48411	1/4 turn lock + wing nut + key code 333 (without rods)
	48591	1/4 turn lock + wing nut key code 405 (without rods)
	48592	1/4 turn lock + wing nut + key code 1242E (without rods)
Depth support profile for 19” FIXED frame
	PBR250	Profile for plate support depth 250 mm
Triangle locks
	48415	8-mm triangle lock + key (without rods)
	48547	6.5-mm triangle lock + key (without rods)
Height adjustment element
	48716	Plate adjustment bracket
Triangle lock for padlock
	48404	11-mm triangular padlock lock + key (without rods)
Interlocking for padlock
	29266	Interlocking for padlock
Keys
	48449	5-mm double-bit key
Handle
	48545	Knob handle
Plinths (galvanised steel)
	ZCLA108025	Galvanised steel plinth 100x800x250
	ZCLA208025	Galvanised steel plinth 200x800x250
Plinth cable support
	48497	Plinth cable support 250 mm depth
Standard cable entry covers
	TS1470	Cable-entry cover 125x685
Cable entry lid for FL21-type frame
	TF1470	Cable-entry cover for FL21-type frame 125x685
FL21-type multimedia membrane
	TFL21/00	Blind cover FL21
	TFL21/06	FL21 type membrane (6 inputs)
	TFL21/25	FL21 type membrane (25 inputs)
	TFL21/35	FL21 type membrane (35 inputs)
	TFL21/50	FL21 type membrane (50 inputs)
Canopy (galvanised steel)
	TEJ8025	Rolled steel canopy 800x250
Inner door (rolled steel)
	PIN10080	Rolled steel inner door 1000x800
Rods
	48386	Rods for 1000 mm high cabinets
Profile for deep support
	PB250	Profile for deep support 250 mm
Door switch with push button
	48609	Magnetic door switch
	48610	Door switch with screw fixation
Door switch with LED with push button
	48618	Magnetic door switch
	48619	Door switch with screw fixation
Wall-mounting support
	48423	Zinc-plated steel wall-mounting support
External fixing support
	48422	Hanger attachment from outside
Post attachment
	48420/7080	Post attachment for 700-800 mm wide cabinet
Lifting eyebolts
	48475	M12 lifting eyebolts
Support stand
	49730	Cold-Rolled steel support in grey RAL 7035
