Reference: GNT505030

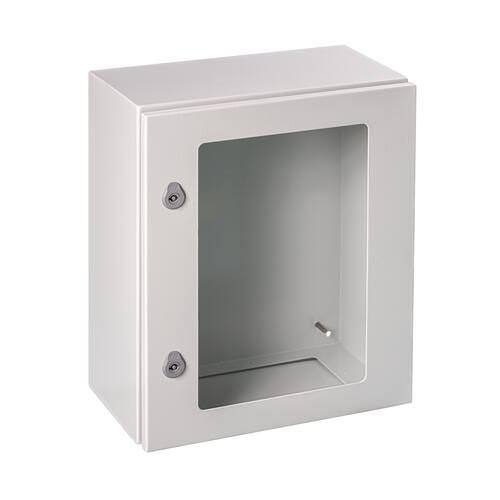

IP66 rolled steel wall cabinet 500x500x300. Transparent door with plate

Dimensions (mm) Door type With mounting plate
Height Width Depth
500500300Single transparentYes
GNT505030

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 12
Resistance to impactIK09
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Standard locks
484505-mm double-bit lock
Plain metal mounting plates
PL5050Plain metal mounting plate 500x500
Plain insulating mounting plates
PLB5050Plain insulating mounting plate 500x500
Locks with key
484561/4 turn mailbox type lock + key code 333
484931/4 turn mailbox type lock + key code 405
484951/4 turn mailbox type lock + key code 1242E
Wing nut locks
484121/4 turn lock + fixed wing nut
Perforated metal mounting plates
PLU5050Perforated metal mounting plate 500x500
Plate height adjuster
48228Plate height adjuster
Wing nut locks
48409JIS 1/4 turn lock + wing nut + key
484571/4 turn lock + wing nut + key code 333
485871/4 turn lock + wing nut + key code 1242E
485901/4 turn lock + wing nut + key code 405
Depth support profile for 19” FIXED frame
PBR300Profile for plate support depth 300 mm
Triangle locks
484518-mm triangle lock + key
485466.5-mm triangle lock + key
Height adjustment element
48716Plate adjustment bracket
Triangle lock for padlock
4850111-mm triangular padlock lock + key
Square locks
484557-mm square lock + key
Interlocking for padlock
29266Interlocking for padlock
Keys
484495-mm double-bit key
Handle
48545Knob handle
Standard cable entry covers
TS1440Cable-entry cover 125x385
Cable entry lid for FL21-type frame
TF1440Cable-entry cover for FL21-type frame 125x385
FL21-type multimedia membrane
TFL21/00Blind cover FL21
TFL21/06FL21 type membrane (6 inputs)
TFL21/25FL21 type membrane (25 inputs)
TFL21/35FL21 type membrane (35 inputs)
TFL21/50FL21 type membrane (50 inputs)
Canopy (galvanised steel)
TEJ5030Rolled steel canopy 500x300
Inner door (rolled steel)
PIN5050Rolled steel inner door 500x500
Profile for deep support
PB300Profile for deep support 300 mm
Door switch with push button
48609Magnetic door switch
48610Door switch with screw fixation
Door switch with LED with push button
48618Magnetic door switch
48619Door switch with screw fixation
Fixed trays
BNF19-1U/200Fixed tray L=200 mm
Wall-mounting support
48423Zinc-plated steel wall-mounting support
External fixing support
48422Hanger attachment from outside
Post attachment
48420/5060Post attachment for 500-600 mm wide cabinet
Lifting eyebolts
48475M12 lifting eyebolts
Support stand
49730Cold-Rolled steel support in grey RAL 7035

Spare parts

Image Reference Description Data sheet
Spare hinge
48635 Argenta hinge
