Reference: GNT507020

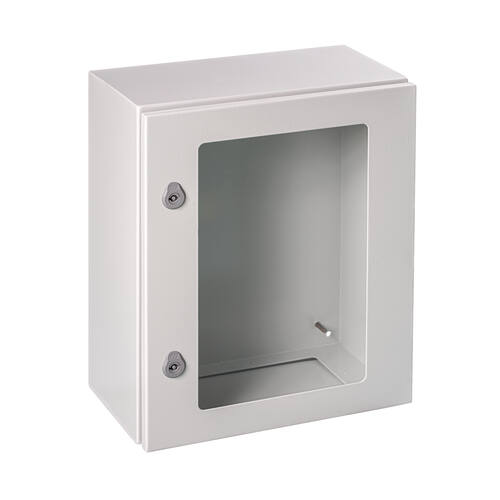

IP66 rolled steel wall cabinet 500x700x200. Transparent door with plate

Dimensions (mm) Door type With mounting plate
Height Width Depth
500700200Single transparentYes
GNT507020

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 12
Resistance to impactIK09
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Standard locks
484505-mm double-bit lock
Plain metal mounting plates
PL5070Plain metal mounting plate 500x700
Plain insulating mounting plates
PLB5070Plain insulating mounting plate 500x700
Locks with key
484561/4 turn mailbox type lock + key code 333
484931/4 turn mailbox type lock + key code 405
484951/4 turn mailbox type lock + key code 1242E
Wing nut locks
484121/4 turn lock + fixed wing nut
Perforated metal mounting plates
PLU5070Perforated metal mounting plate 500x700
Plate height adjuster
48228Plate height adjuster
Wing nut locks
48409JIS 1/4 turn lock + wing nut + key
484571/4 turn lock + wing nut + key code 333
485871/4 turn lock + wing nut + key code 1242E
485901/4 turn lock + wing nut + key code 405
Depth support profile for 19” FIXED frame
PBR200Profile for plate support depth 200 mm
Triangle locks
484518-mm triangle lock + key
485466.5-mm triangle lock + key
Height adjustment element
48716Plate adjustment bracket
Triangle lock for padlock
4850111-mm triangular padlock lock + key
Square locks
484557-mm square lock + key
Interlocking for padlock
29266Interlocking for padlock
Keys
484495-mm double-bit key
Handle
48545Knob handle
Standard cable entry covers
TS1450Cable-entry cover 125x485
Cable entry lid for FL21-type frame
TF1450Cable-entry cover for FL21-type frame 125x485
FL21-type multimedia membrane
TFL21/00Blind cover FL21
TFL21/06FL21 type membrane (6 inputs)
TFL21/25FL21 type membrane (25 inputs)
TFL21/35FL21 type membrane (35 inputs)
TFL21/50FL21 type membrane (50 inputs)
Canopy (galvanised steel)
TEJ7020Rolled steel canopy 700x200
Inner door (rolled steel)
PIN5070Rolled steel inner door 500x700
Profile for deep support
PB200Profile for deep support 200 mm
Door switch with push button
48609Magnetic door switch
48610Door switch with screw fixation
Door switch with LED with push button
48618Magnetic door switch
48619Door switch with screw fixation
Wall-mounting support
48423Zinc-plated steel wall-mounting support
External fixing support
48422Hanger attachment from outside
Post attachment
48420/7080Post attachment for 700-800 mm wide cabinet
Lifting eyebolts
48475M12 lifting eyebolts

Spare parts

Image Reference Description Data sheet
Spare hinge
48635 Argenta hinge
