Reference: INX10010030/PD-316

IP55 stainless 316L wall-cabinet 1000x1000x300. Double opaque door with plate

Dimensions (mm) Door type With mounting plate
Height Width Depth
10001000300Double opaqueYes
INX10010030/PD-316

Technical data

Technical data
Protection degreeIP55
NEMA degree of protection1, 12
Resistance to impactIK10

Accessories

Image Reference Description Data sheet
Plain metal mounting plates
PL100100Plain metal mounting plate 1000x1000
INOX standard locks
483915-mm double-bit lock
Plain insulating mounting plates
PLB100100Plain insulating mounting plate 1000x1000
Wing nut locks
484131/4 turn lock + fixed wing nut
Perforated metal mounting plates
PLU100100Perforated metal mounting plate 1000x1000
Plate height adjuster
48228Plate height adjuster
Wing nut locks
48410JIS 1/4 turn lock + wing nut + key
484111/4 turn lock + wing nut + key code 333 (without rods)
485911/4 turn lock + wing nut key code 405 (without rods)
485921/4 turn lock + wing nut + key code 1242E (without rods)
Depth support profile for 19” FIXED frame
PBR300Profile for plate support depth 300 mm
Triangle locks
484158-mm triangle lock + key (without rods)
485476.5-mm triangle lock + key (without rods)
Height adjustment element
48716Plate adjustment bracket
Triangle lock for padlock
4840411-mm triangular padlock lock + key (without rods)
Square locks
485407-mm square lock + key (without rods)
Interlocking for padlock
29266Interlocking for padlock
Keys
484495-mm double-bit key
Handle
48545Knob handle
Plinth cable support
48498Plinth cable support 300 mm depth
Rods
48386Rods for 1000 mm high cabinets
Door retainer

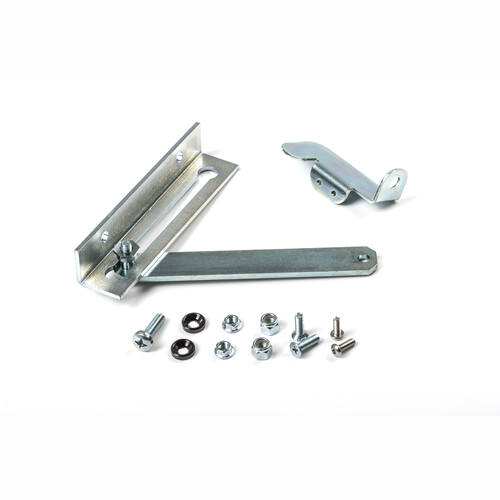

48383Retainer, L = 130 mm for stainless-steel cabinets
Profile for deep support
PB300Profile for deep support 300 mm
Door switch with push button
48610Door switch with screw fixation
Door switch with LED with push button
48619Door switch with screw fixation
Fixed trays
BNF19-1U/200Fixed tray L=200 mm
Wall-mounting support
48623AISI 316L stainless steel wall-mounting support
External fixing support
48422Hanger attachment from outside
Lifting eyebolts
48475M12 lifting eyebolts
Support stand
49730Cold-Rolled steel support in grey RAL 7035
