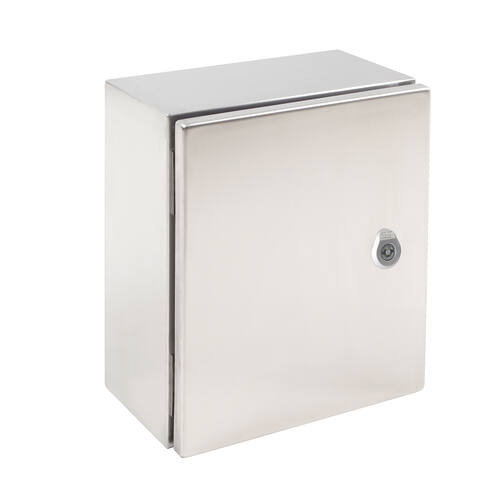

INX252015

Dimensions (mm)			Door type	With mounting plate
Height	Width	Depth	Door type	With mounting plate
250	200	150	Single opaque	Yes

Technical data

Technical data
Protection degree	IP66
NEMA degree of protection	1, 4, 4x, 12
Resistance to impact	IK08

Accessories

Image	Reference	Description
Plain metal mounting plates
	PL2520	Plain metal mounting plate 250x200
INOX standard locks

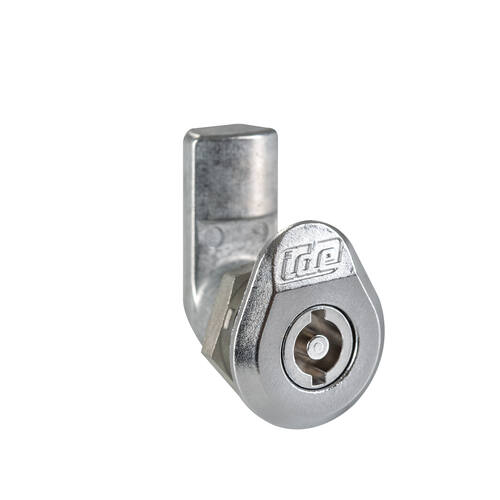

	48390	5-mm double-bit lock
Plain insulating mounting plates
	PLB2520	Plain insulating mounting plate 250x200
Locks with key
	48456	1/4 turn mailbox type lock + key code 333
	48493	1/4 turn mailbox type lock + key code 405
	48495	1/4 turn mailbox type lock + key code 1242E
Wing nut locks
	48412	1/4 turn lock + fixed wing nut
Perforated metal mounting plates
	PLU2520	Perforated metal mounting plate 250x200
Plate height adjuster
	48228	Plate height adjuster
Wing nut locks
	48409	JIS 1/4 turn lock + wing nut + key
	48457	1/4 turn lock + wing nut + key code 333
	48587	1/4 turn lock + wing nut + key code 1242E
	48590	1/4 turn lock + wing nut + key code 405
Triangle locks
	48451	8-mm triangle lock + key
	48546	6.5-mm triangle lock + key
Triangle lock for padlock
	48501	11-mm triangular padlock lock + key
Square locks
	48455	7-mm square lock + key
Interlocking for padlock
	29266	Interlocking for padlock
Keys
	48449	5-mm double-bit key
Handle
	48545	Knob handle
Canopy (stainless steel)

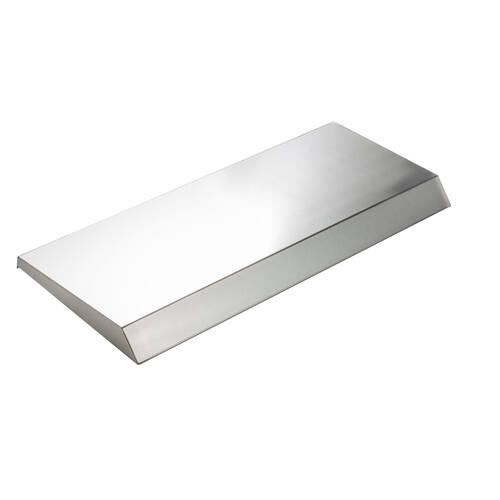

	INXTEJ2015	Stainless steel canopy 200x150
Profile for deep support
	PB150	Profile for deep support 150 mm
Door switch with push button
	48610	Door switch with screw fixation
Door switch with LED with push button
	48619	Door switch with screw fixation
Wall-mounting support
	48623	AISI 316L stainless steel wall-mounting support
External fixing support
	48422	Hanger attachment from outside
Lifting eyebolts
	48475	M12 lifting eyebolts
Support stand
	49730	Cold-Rolled steel support in grey RAL 7035
