IP66 Stainless steel wall-mounting cabinets

INX303020-316

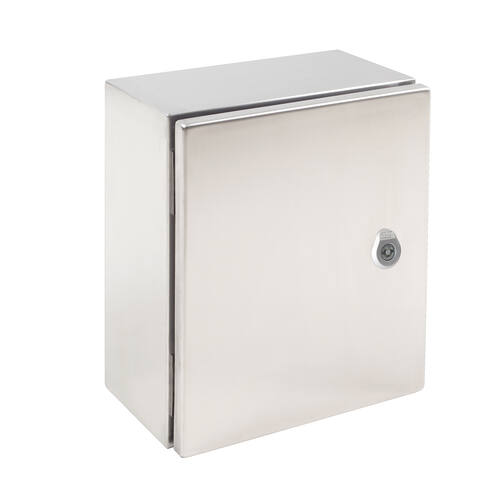

IP66 Stainless steel 316L wall-mounting cabinet 300x300x200 with mounting plate
Dimensions (mm) Door type With mounting plate
Height Width Depth
300300200Opaca únicaYes
11

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 4x, 12
Resistance to impactIK08

Accessories

Image Reference Description Data sheet
Plain metal mounting plates
PL3030
Plain insulating mounting plates
PLB3030
Perforated metal mounting plates
PLU3030
Plate height adjuster
48228Pack 4 risers + 4 anti-rotation nuts
Depth support profile for 19” FIXED frame
PBR200
Height adjustment element
48716
Handle
48545Triangle insert lock + triangle key 6.5
Profile for deep support
PB200
Door retainer
48383Laminated steel cabinet door retainer
Door switch with push button
48610Door switch with screw fixation
Door switch with LED with push button
48619
Wall-mounting support
48623Wall bracket stainless steel 316L (Pack of 4 pcs.)
External fixing support
48422Mast support for cabinets 700-800 mm wide
Post attachment
48420/3040Clip-on plug 3.5x13
Lifting eyebolts
48475Central support for full plate (Pack 2 pcs)
INOX standard locks
48390Bars for 1200 mm high cabinet
Locks with key
48456Busbar support base 160A-400A
48493Double door inner lock + rod 2000
48495Double door inner lock + rod 2000 mm
Wing nut locks
48412JIS 1/4 turn butterfly lock with key 3P (Without bars)
48409Double 5 mm ATEX pallet lock 3P (Without bars)
48457Quarter-turn mailbox type closure with key code 333
48587Security insert lock with key code 405
48590Security insert lock with key code 1242E
Triangle locks
48451Polyamide double latch key 5 mm
48546Quarter-turn wing knob lock without key (surface mounted)
Square locks
48455Busbar support profile 160A-250A
-
48501Quarter-turn mailbox type closure with key code 333 3P (without rods)
Interlocking for padlock
29266Stainless steel interlock lock
Keys
48449Quarter-turn mailbox type closure with key code 333 (surface)
