Reference: INXT504025

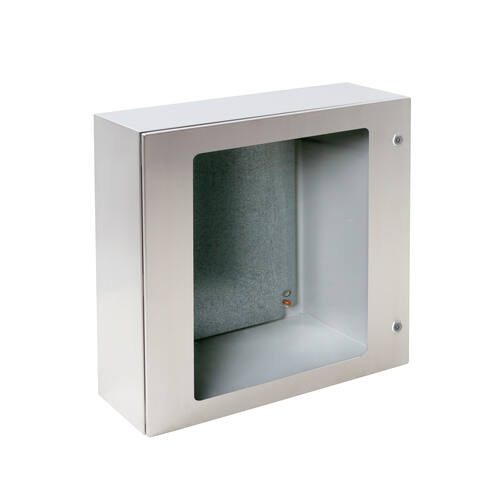

IP66 stainless steel 304L wall-cabinet 500x400x250. Transparent door with plate

← Return to the list
Dimensions (mm) Door type With mounting plate
Height Width Depth
500400250Single transparentYes
Plan pdf pdf
Plan 3D 3D
Data sheet pdf
INXT504025

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 4x, 12
Resistance to impactIK09
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Plain metal mounting plates
PL5040Plain metal mounting plate 500x400
INOX standard locks
483905-mm double-bit lock
Plain insulating mounting plates
PLB5040Plain insulating mounting plate 500x400
Locks with key
484561/4 turn mailbox type lock + key code 333
484931/4 turn mailbox type lock + key code 405
484951/4 turn mailbox type lock + key code 1242E
Wing nut locks
484121/4 turn lock + fixed wing nut
Perforated metal mounting plates
PLU5040Perforated metal mounting plate 500x400
Plate height adjuster
48228Plate height adjuster
Wing nut locks
48409JIS 1/4 turn lock + wing nut + key
484571/4 turn lock + wing nut + key code 333
485871/4 turn lock + wing nut + key code 1242E
485901/4 turn lock + wing nut + key code 405
Depth support profile for 19” FIXED frame
PBR250Profile for plate support depth 250 mm
Triangle locks
484518-mm triangle lock + key
485466.5-mm triangle lock + key
Height adjustment element
48716Plate adjustment bracket
Triangle lock for padlock
4850111-mm triangular padlock lock + key
Square locks
484557-mm square lock + key
Interlocking for padlock
29266Interlocking for padlock
Keys
484495-mm double-bit key
Handle
48545Knob handle
Plinths (stainless steel)
INXZCLA104025Stainless steel plinth 100x400x250
Plinth cable support
48497Plinth cable support 250 mm depth
Canopy (stainless steel)
INXTEJ4025Stainless steel canopy 400x250
Inner door (stainless steel)
INXPIN5040Stainless steel 304L inner door 500x400
Profile for deep support
PB250Profile for deep support 250 mm
Door switch with push button
48610Door switch with screw fixation
Door switch with LED with push button
48619Door switch with screw fixation
Wall-mounting support
48623AISI 316L stainless steel wall-mounting support
External fixing support
48422Hanger attachment from outside
Post attachment
48420/3040Post attachment for 300-400 mm wide cabinet
Lifting eyebolts
48475M12 lifting eyebolts
Support stand
49730Cold-Rolled steel support in grey RAL 7035
